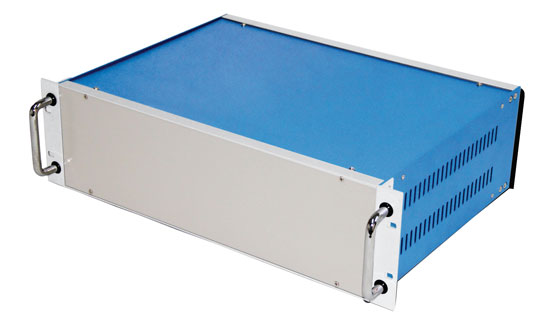

| Specifications » RACK MOUNTABLE STYLE |
| (For Sub Rack Mounting, Panel Mounting &
Table Top Instruments) |
| |
 |
| Colour Combination : |
 |
All sections natural anodized finish |
|
Top / Bottom & Side panels President blue structure powder coated finish |
|
Front / Rear panels Siemens grey plain powder coated finish |
|
Base Plate (Component mounting tray / chassis) Yellow zinc plated finish |
|
|
| |
| Optional Accessories : |
|

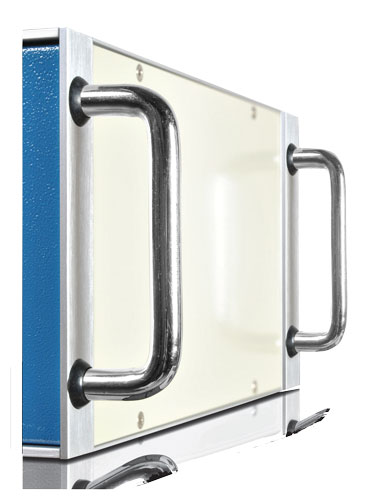

| Handle: Mild steel chrome plated Φ 10 mm, M5 tapped
(In Pair) |
|
| |

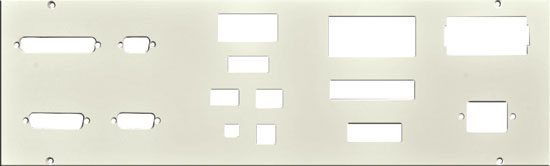

| Cutouts for Input / Output (Optional) : |
| We can provide cutouts in FRONT & BACK panels. We have library of punching dies of commonly used I/O devices in electronics
industry (viz. D-Sub connectors, 3 Pin computer socket, Fuse holder, 3½ Digit DPM, LCD Displays, BNC connectors, Instrument
fans, rocker switch, potentiometer & many more). |
 |
|
|
| |
 |
| Features: |
 |
Supplied complete with Front / Rear, Top / Bottom & Base Plate (Component mounting tray / chassis) |
|
All aluminium panels & profiles |
|
All profiles with natural anodized finish |
|
Aluminium extrusion based modular construction |
|
All parts die fabricated for interchangeability and easy assembly |
|

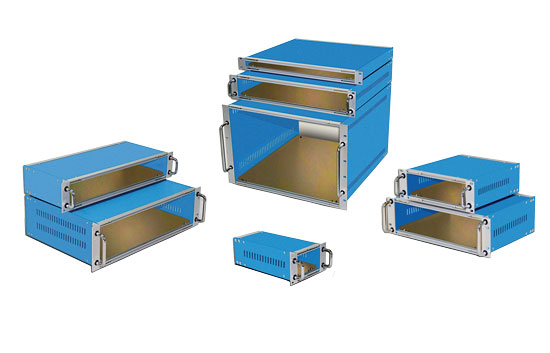

Choice of more than 100 sizes |
|
|
| |
| Form of Supply : |
|
Front Height sections (Aluminium Extrusion) Anodized - 02 Pcs. |
|
Front/Rear width sections (Aluminium Extrusion) Anodized - 04 Pcs. |
|
Front / Rear Panels (Aluminium Sheet) Powder Coated - 02 Pcs. |
|
Side Panels (Aluminium Sheet) Powder Coated - 02 Pcs. |
|
Base Plate / Component mounting tray / chassis (steel sheet) yellow Zinc Plated - 01 Pc. |
|
Top Cover (Aluminium / Steel Sheet) Powder Coated - 01 Pc. |
|
Bottom Cover (Aluminium /steel sheet) powder coated with round feet (ABS Moulded) - 01 Pc. |
|
Set of Fasteners - 01 Set |
|
 |
|
