| Specifications » MODULAR SUBRACKS / CARD FRAMES FOR ELECTRONICS |
| |
|
| |
|
|
| |

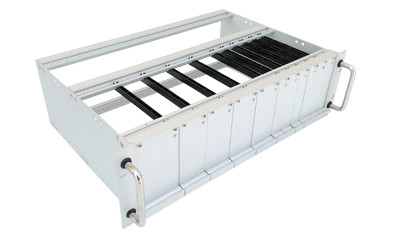

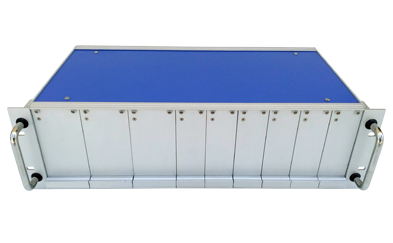

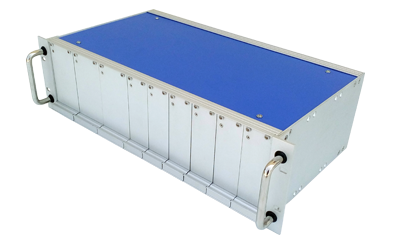

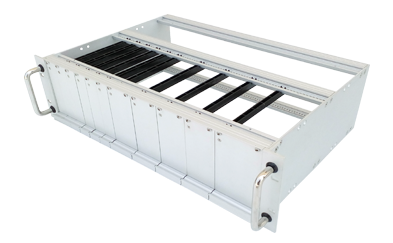

| We manufacture a comprehensive range of modular SUBRACKS / CARD FRAMES, Facia Panels, Card Guides, Card Pullers and other relevant accessories. Our products are made from exclusively designed Aluminium extruded sections. All parts are die fabricated for
interchangeability and easy assembly. |
| |
| Standard Range Offered |
HEIGHT : 2U, 3U, 4U, 5U, 6U (Others on request)
WIDTH : 42T, 63T, 84T (Others on request)
DEPTH : 185D, 245D, 305D, 365D, 425D (Over all)
|
| |
| For Imformation |
1U = 44.45mm (1.75 inch) 1T = 5.08mm (0.2 inch)
Formula for calculating actual Height of Card Frame / Subrack
Actual Height = (nu) - 0.75 in mm
For Example : - Height of 3U = (3 x 44.45) - 0.75 = 132.6mm |
|
| Physical Dimensions |
| HEIGHT |
OVERALL HEIGHT |
USABLE HEIGHT |
| 2U |
88.00 |
68.00 |
| 3U |
132.60 |
112.60 |
| 4U |
177.00 |
157.00 |
| 5U |
221.50 |
201.50 |
| 6U |
266.00 |
246.00 |
|
|
| DEPTH |
USABLE DEPTH |
| 185D |
172.60 |
| 245D |
232.60 |
| 305D |
292.60 |
| 365D |
352.60 |
| 425D |
412.60 |
|
| |
| WIDTH |
OVERALL WIDTH (W1) |
INSERTION WIDTH (W2) |
USABLE WIDTH (W3) |
HORIZONTAL MOUNTING CENTERS (W4) |
| 42T |
269.36 |
229.84 |
213.36 |
251.76 |
| 63T |
376.04 |
336.52 |
320.04 |
358.44 |
| 84T |
482.60 |
443.20 |
426.72 |
465.00 |
| |
| OPTIONAL ACCESSORIES |
| Card Guides in Polycarbonate for different PCB sizes, Card Pullers, Facia Panels with delrin seats & Captive Screws,
ABS moulded PCB Brackets for fixing PCB’s with Facia Panels. Front & Rear Panels (screw on type),
Top & Bottom (Ventilated or without Ventilation). |
|
| ACCESSORIES FOR SUBRACKS / CARD FRAMES |
| SPM offers a variety of accessories for use with Subracks / Card Frames as following. |
|
| |
| Card Guides : |
Moulded Card Guide in length suitable for EURO 160 mm and Extended EURO 220 mm PCB’s.
Material : Polycarbonate |
|
 |
|
 |

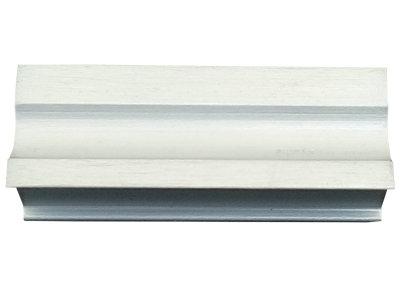

| Card Pullers : |
Moulded Card Guide in length suitable for EURO 160 mm and Extended EURO 220 mm PCB’s.
Material : Polycarbonate |
|
|
| Threaded Strips : |
These Strips slide into slots provided in aluminium profiles.
The Facia panels and Mother board / Back plain are fixed on these strips
Material & Finish : Mild steel with Zinc plating and Passivation.
Specs : Threaded M2.5 at 5.08mm (0.2 inch) Pitch
Range : 42T, 63T, 84T |
|
 |
|
 |

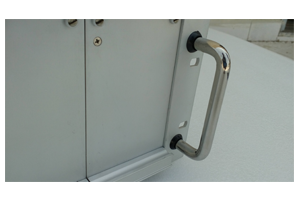

| Handles : |
| For mounting on front of Subracks / Card Frames, these are supplied in Pairs with fixing hardware. |
|
|

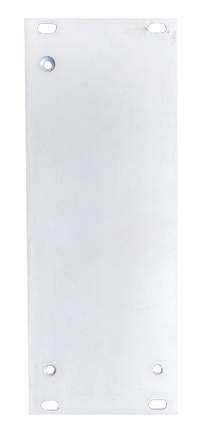

| Facia Panels : |
These are available in different widths and heights.
Height : 2U, 3U, 4U, 5U & 6U
Width : 4T, 6T, 8T, 10T & 12T (Others on request)
Material & Finish : 2.5mm thick aluminium sheet with anodized finish in
natural aluminium shade.
Scope of Supply : Supplied completed with delrin bushes & screws |
|
 |
|
 |

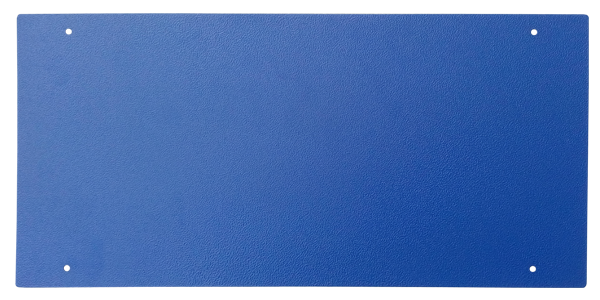

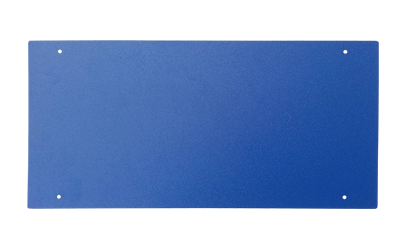

| Top & Bottom Covers : |
These are available with ventilation slots or plain (without ventilation slots)
Material & Finish : 1.0 mm thick aluminium sheet with powder coating
with structure finish in blue shade |
|
|

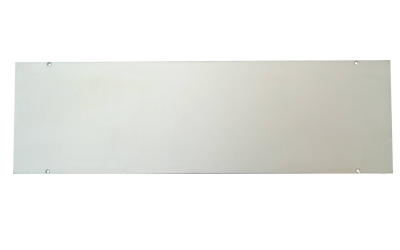

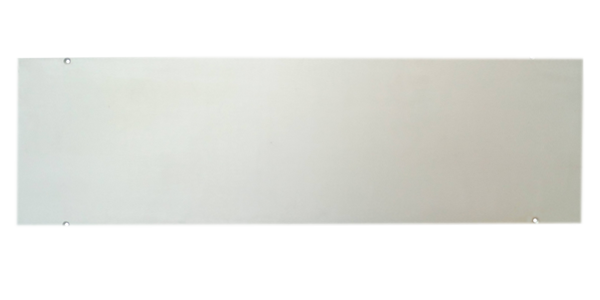

| Front & Rear Panels : |
Screw on types for use as front or rear panels.
Material & Finish : 2.5 mm thick aluminium sheet with anodized
finish in natural aluminium shade
Range : Front panel 84T, Rear Panel 85T (Special width on request) |
|
 |
|
|
