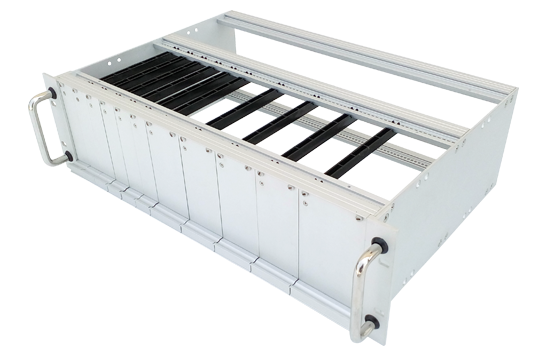

Easy Selection Guide Sub Rack / Card Frame
  Specifications

1U = 44.45 mm or 1.75 inch Unit in mm 1T = 5.08 mm or 0.2 inch
Sr. No. Specification Code Overall Size

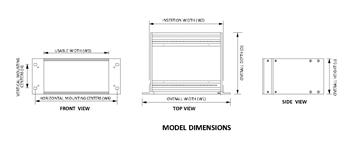

H / W1 / W2 /W4 / D		 Usable Space Inside
H / W / D		 Front Plate Size
H / W 		Rear Panel Size
H / W
1
2U / 42T / 185D
88.2/269.36/229.84/251.76/185
68.2/213.36/172.6
85 / 213
85 / 218
2
2U / 42T / 245D
88.2/269.36/229.84/251.76/245
68.2/213.36/232.6
85 / 213
85 / 218
3
2U / 42T / 305D
88.2/269.36/229.84/251.76/305
68.2/213.36/292.6
85 / 213
85 / 218
4
2U / 42T / 365D
88.2/269.36/229.84/251.76/365
68.2/213.36/352.6
85 / 213
85 / 218
5
2U / 42T / 425D
88.2/269.36/229.84/251.76/425
68.2/213.36/412.6
85 / 213
85 / 218
6
2U / 63T / 185D
88.2/376.04/336.52/358.44/185
68.2/320.04/172.6
85 / 319.6
85 / 324.7
7
2U / 63T / 245D
88.2/376.04/336.52/358.44/245
68.2/320.04/232.6
85 / 319.6
85 / 324.7
8
2U / 63T / 305D
88.2/376.04/336.52/358.44/305
68.2/320.04/292.6
85 / 319.6
85 / 324.7
9
2U / 63T / 365D
88.2/376.04/336.52/358.44/365
68.2/320.04/352.6
85 / 319.6
85 / 324.7
10
2U / 63T / 425D
88.2/376.04/336.52/358.44/425
68.2/320.04/412.6
85 / 319.6
85 / 324.7
11
2U / 84T / 185D
88.2/482.6/443.2/465/185
68.2/426.72/172.6
85 / 426.3
85 / 431.4
12
2U / 84T / 245D
88.2/482.6/443.2/465/245
68.2/426.72/232.6
85 / 426.3
85 / 431.4
13
2U / 84T / 305D
88.2/482.6/443.2/465/305
68.2/426.72/292.6
85 / 426.3
85 / 431.4
14
2U / 84T / 365D
88.2/482.6/443.2/465/365
68.2/426.72/352.6
85 / 426.3
85 / 431.4
15
2U / 84T / 425D
88.2/482.6/443.2/465/425
68.2/426.72/412.6
85 / 426.3
85 / 431.4
16
3U / 42T / 185D
132.6/269.36/229.84/251.76/185
112.6/213.36/172.6
129.4 / 213
129.4 / 218
17
3U / 42T / 245D
132.6/269.36/229.84/251.76/245
112.6/213.36/232.6
129.4 / 213
129.4 / 218
18
3U / 42T / 305D
132.6/269.36/229.84/251.76/305
112.6/213.36/292.6
129.4 / 213
129.4 / 218
19
3U / 42T / 365D
132.6/269.36/229.84/251.76/365
112.6/213.36/352.6
129.4 / 213
129.4 / 218
20
3U / 42T / 425D
132.6/269.36/229.84/251.76/425
112.6/213.36/412.6
129.4 / 213
129.4 / 218
21
3U / 63T / 185D
132.6/376.04/336.52/358.44/185
112.6/320.04/172.6
129.4 / 319.6
129.4 / 324.7
22
3U / 63T / 245D
132.6/376.04/336.52/358.44/245
112.6/320.04/232.6
129.4 / 319.6
129.4 / 324.7
23
3U / 63T / 305D
132.6/376.04/336.52/358.44/305
112.6/320.04/292.6
129.4 / 319.6
129.4 / 324.7
24
3U / 63T / 365D
132.6/376.04/336.52/358.44/365
112.6/320.04/352.6
129.4 / 319.6
129.4 / 324.7
25
3U / 63T / 425D
132.6/376.04/336.52/358.44/425
112.6/320.04/412.6
129.4 / 319.6
129.4 / 324.7
26
3U / 84T / 185D
132.6/482.6/443.2/465/185
112.6/426.72/172.6
129.4 / 426.3
129.4 / 431.4
27
3U / 84T / 245D
132.6/482.6/443.2/465/245
112.6/426.72/232.6
129.4 / 426.3
129.4 / 431.4
28
3U / 84T / 305D
132.6/482.6/443.2/465/305
112.6/426.72/292.6
129.4 / 426.3
129.4 / 431.4
29
3U / 84T / 365D
132.6/482.6/443.2/465/365
112.6/426.72/352.6
129.4 / 426.3
129.4 / 431.4
30
3U / 84T / 425D
132.6/482.6/443.2/465/425
112.6/426.72/412.6
129.4 / 426.3
129.4 / 431.4
31
4U / 42T / 185D
177/269.36/229.84/251.76/185
157/213.36/172.6
173.8 / 213
173.8 / 218
32
4U / 42T / 245D
177/269.36/229.84/251.76/245
157/213.36/232.6
173.8 / 213
173.8 / 218
33
4U / 42T / 305D
177/269.36/229.84/251.76/305
157/213.36/292.6
173.8 / 213
173.8 / 218
34
4U / 42T / 365D
177/269.36/229.84/251.76/365
157/213.36/352.6
173.8 / 213
173.8 / 218
35
4U / 42T / 425D
177/269.36/229.84/251.76/425
157/213.36/412.6
173.8 / 213
173.8 / 218
36
4U / 63T / 185D
177/376.04/336.52/358.44/185
157/320.04/172.6
173.8 / 319.6
173.8 / 324.7
37
4U / 63T / 245D
177/376.04/336.52/358.44/245
157/320.04/232.6
173.8 / 319.6
173.8 / 324.7
38
4U / 63T / 305D
177/376.04/336.52/358.44/305
157/320.04/292.6
173.8 / 319.6
173.8 / 324.7
39
4U / 63T / 365D
177/376.04/336.52/358.44/365
157/320.04/352.6
173.8 / 319.6
173.8 / 324.7
40
4U / 63T / 425D
177/376.04/336.52/358.44/425
157/320.04/412.6
173.8 / 319.6
173.8 / 324.7
41
4U / 84T / 185D
177/482.6/443.2/465/185
157/426.72/172.6
173.8 / 426.3
173.8 / 431.4
42
4U / 84T / 245D
177/482.6/443.2/465/245
157/426.72/232.6
173.8 / 426.3
173.8 / 431.4
43
4U / 84T / 305D
177/482.6/443.2/465/305
157/426.72/292.6
173.8 / 426.3
173.8 / 431.4
44
4U / 84T / 365D
177/482.6/443.2/465/365
157/426.72/352.6
173.8 / 426.3
173.8 / 431.4
45
4U / 84T / 425D
177/482.6/443.2/465/425
157/426.72/412.6
173.8 / 426.3
173.8 / 431.4
46
5U / 42T / 185D
221.5/269.36/229.84/251.76/185
201.5/213.36/172.6
129 / 426.3
218.3 / 218
47
5U / 42T / 245D
221.5/269.36/229.84/251.76/245
201.5/213.36/232.6
218.3 / 213
218.3 / 218
48
5U / 42T / 305D
221.5/269.36/229.84/251.76/305
201.5/213.36/292.6
218.3 / 213
218.3 / 218
49
5U / 42T / 365D
221.5/269.36/229.84/251.76/365
201.5/213.36/352.6
218.3 / 213
218.3 / 218
50
5U / 42T / 425D
221.5/269.36/229.84/251.76/425
201.5/213.36/412.6
218.3 / 213
218.3 / 218
51
5U / 63T / 185D
221.5/376.04/336.52/358.44/185
201.5/320.04/172.6
218.3 / 319.6
218.3 / 324.7
52
5U / 63T / 245D
221.5/376.04/336.52/358.44/245
201.5/320.04/232.6
218.3 / 319.6
218.3 / 324.7
53
5U / 63T / 305D
221.5/376.04/336.52/358.44/305
201.5/320.04/292.6
218.3 / 319.6
218.3 / 324.7
54
5U / 63T / 365D
221.5/376.04/336.52/358.44/365
201.5/320.04/352.6
218.3 / 319.6
218.3 / 324.7
55
5U / 63T / 425D
221.5/376.04/336.52/358.44/425
201.5/320.04/412.6
218.3 / 319.6
218.3 / 324.7
56
5U / 84T / 185D
221.5/482.6/443.2/465.0/185
201.5/426.72/172.6
218.3 / 426.3
218.3 / 431.4
57
5U / 84T / 245D
221.5/482.6/443.2/465.0/245
201.5/426.72/232.6
218.3 / 426.3
218.3 / 431.4
58
5U / 84T / 305D
221.5/482.6/443.2/465.0/305
201.5/426.72/292.6
218.3 / 426.3
218.3 / 431.4
59
5U / 84T / 365D
221.5/482.6/443.2/465.0/365
201.5/426.72/352.6
218.3 / 426.3
218.3 / 431.4
60
5U / 84T / 425D
221.5/482.6/443.2/465.0/425
201.5/426.72/412.6
218.3 / 426.3
218.3 / 431.4
61
6U / 42T / 185D
266/269.36/229.84/251.76/185
246/213.36/172.6
262.7 / 213
262.7 / 218
62
6U / 42T / 245D
266/269.36/229.84/251.76/245
246/213.36/232.6
262.7 / 213
262.7 / 218
63
6U / 42T / 305D
266/269.36/229.84/251.76/305
246/213.36/292.6
262.7 / 213
262.7 / 218
64
6U / 42T / 365D
266/269.36/229.84/251.76/365
246/213.36/352.6
262.7 / 213
262.7 / 218
65
6U / 42T / 425D
266/269.36/229.84/251.76/425
246/213.36/412.6
262.7 / 213
262.7 / 218
66
6U / 63T / 185D
266/376.04/336.52/358.44/185
246/320.04/172.6
262.7 / 319.6
262.7 / 324.7
67
6U / 63T / 245D
266/376.04/336.52/358.44/245
246/320.04/232.6
262.7 / 319.6
262.7 / 324.7
68
6U / 63T / 305D
266/376.04/336.52/358.44/305
246/320.04/292.6
262.7 / 319.6
262.7 / 324.7
69
6U / 63T / 365D
266/376.04/336.52/358.44/365
246/320.04/352.6
262.7 / 319.6
262.7 / 324.7
70
6U / 63T / 425D
266/376.04/336.52/358.44/425
246/320.04/412.6
262.7 / 319.6
262.7 / 324.7
71
6U / 84T / 185D
266/482.6/443.2/465/185
246/426.72/172.6
262.7 / 426.3
262.7 / 431.4
72
6U / 84T / 245D
266/482.6/443.2/465/245
246/426.72/232.6
262.7 / 426.3
262.7 / 431.4
73
6U / 84T / 305D
266/482.6/443.2/465/305
246/426.72/292.6
262.7 / 426.3
262.7 / 431.4
74
6U / 84T / 365D
266/482.6/443.2/465/365
246/426.72/352.6
262.7 / 426.3
262.7 / 431.4
75
6U / 84T / 425D
266/482.6/443.2/465/425
246/426.72/412.6
262.7 / 426.3
262.7 / 431.4

Overall Height of Subracks / Card Frames = (nU x 44.45) - 0.75
Example: 3U = (3 x 44.45) - 0.75 = 132.60

Inside Usable Width of Subracks / Card Frames = nT x 5.08
Example: 63T = 63 x 5.08 = 320.04

Overall Depth of Subracks / Card Frames = nD x 1
Example: 245D = 245 x 1 = 245

All dimensions are in mm

w.e.f. January 2017
